SunkenPatioRelevelledandRepointed,Poole
Part of an Indian sandstone patio had sunk and water sat in the dip. We lifted it, rebuilt the base, relaid the slabs and repointed the patio.
- Failed area lifted
- Base rebuilt and compacted
- Repointed with Titan Pro Joint
A Sunken Section, Lifted and Put Right
The customer noticed water pooling on one part of their Indian sandstone patio. The slabs in that area had sunk, so rain had nowhere to go but into the dip.
We lifted the failed section and redid the sub-base in Type 1 MOT, compacted to raise it back up. The slabs went back down on a strong sharp sand and cement mortar mix.
Then we cleaned the patio and repointed it with Titan Pro Joint.

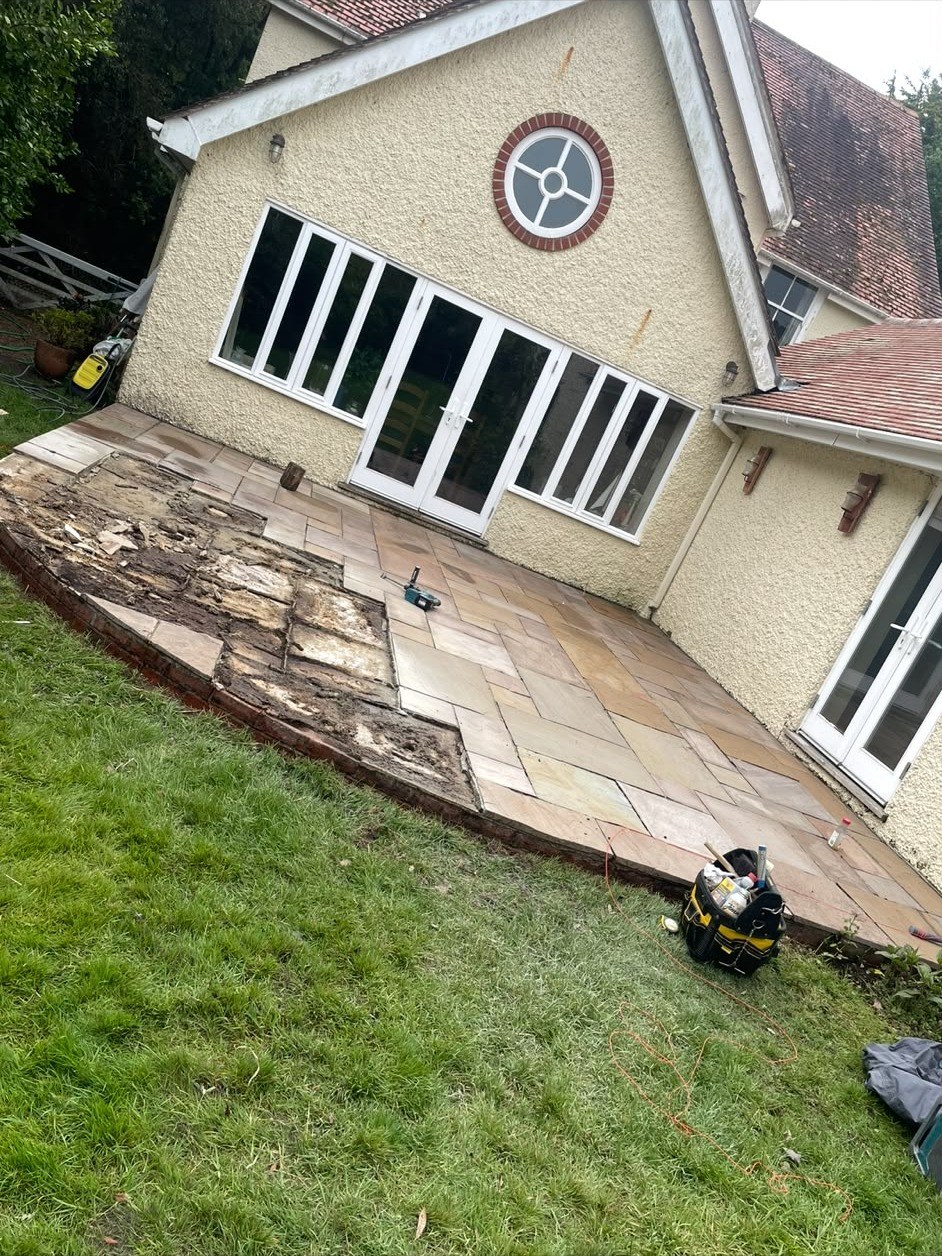

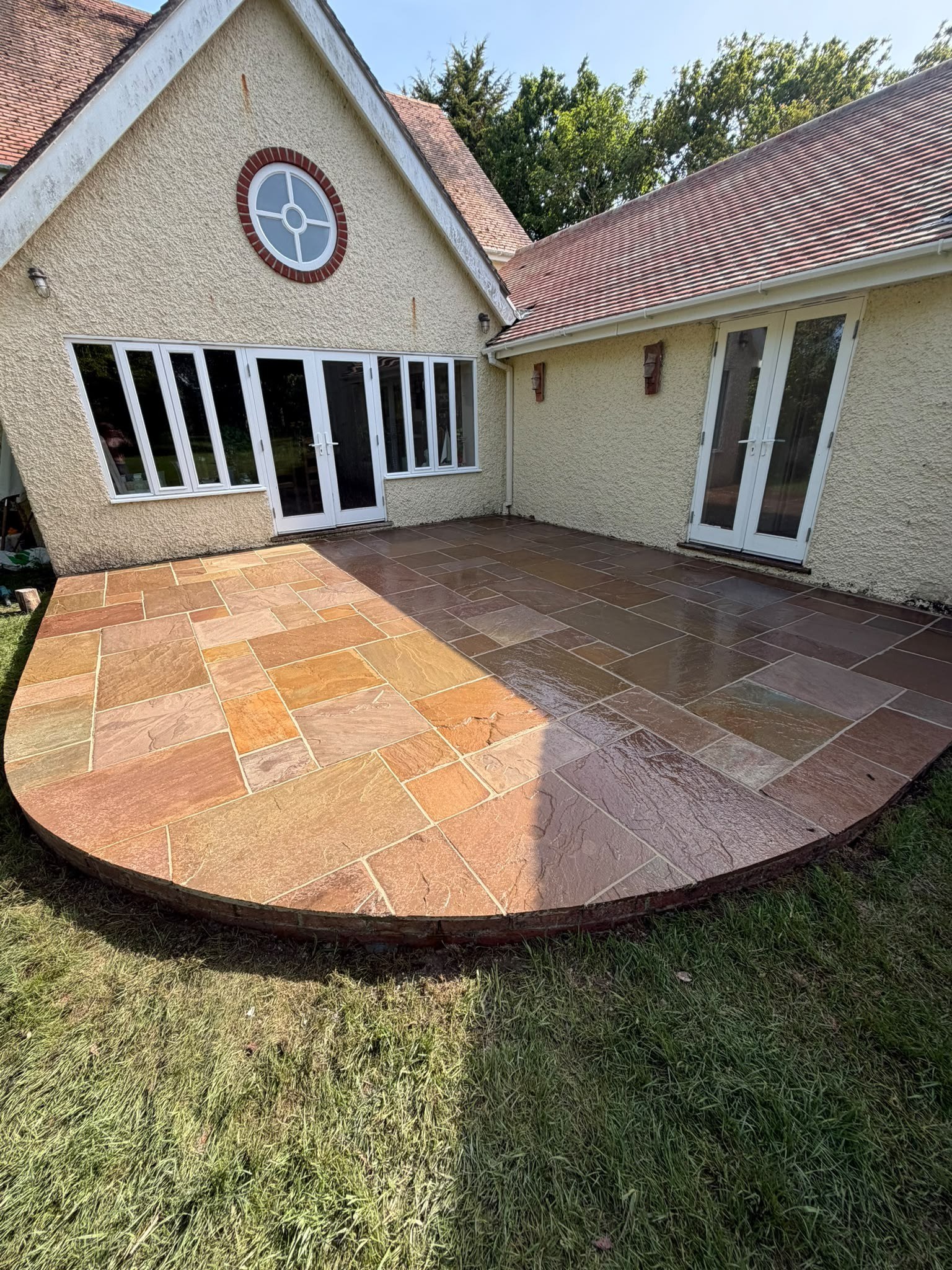

Same patio from a different angle. The first photo was taken once the sunken section had been lifted.
The Job, Start to Finish
The Job
Why Relevel Rather Than Just Repoint
Repointing on its own would not have fixed this one. The slabs had dropped because what was under them had given way, and new pointing over a sunken base would only have cracked and let the water back in. So the failed area came up, the base was rebuilt, and only then did the pointing go in.
- Failed area lifted
- Sub-base redone in compacted Type 1 MOT
- Slabs relaid on a strong mortar bed
Mid-jobWhat Went Into This Patio
Failed section lifted
The sunken slabs came up so the problem underneath could be dealt with.
New Type 1 MOT sub-base
The base redone in Type 1 MOT to raise the area back to level.
Compacted
The sub-base compacted before any slab went back down.
Relaid on a strong mortar bed
Indian sandstone slabs bedded on a strong sharp sand and cement mix.
Patio cleaned
The patio cleaned before repointing.
Repointed with Titan Pro Joint
A jointing compound its maker sells as frost proof, weed proof and able to take a pressure washer.
How the Job Ran
Lifting
The failed area of the patio lifted.
Rebuilding the base
The sub-base redone in Type 1 MOT and compacted to raise the area.
Relaying
The slabs laid back down on a strong sharp sand and cement mortar mix.
Cleaning and repointing
The patio cleaned and repointed with Titan Pro Joint.
